Cisco 3945 Service Module Slots 777
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | CISCO3945/K9 |
| Product Type | Router |
| Form Factor | Desktop – modular – 3U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Capacity | Cisco Unified Communications Manager Express sessions : 350 Cisco Unified SRST sessions : 1200 |
| Network / Transport Protocol | IPSec, PPPoE, L2TPv3 |
| Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR) |
| Remote Management Protocol | SNMP, RMON |
| Encryption Algorithm | SSL |
| Features | Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN) |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag |
| DRAM Memory | 1 GB (installed) / 2 GB (max) |
| Flash Memory | 256 MB (installed) / 8 GB (max |
| LED Status Lights Indicators | Link activity, power |
Connectivity Slots
| Router Interfaces | 3 x 10Base-T/100Base-TX/1000Base-T – RJ-45 Management : 1 x console – RJ-45 Management : 1 x console – mini-USB Type B Serial : 1 x auxiliary – RJ-45 Hi-Speed USB : 2 x 4 PIN USB Type A 2 x SFP (mini-GBIC) |
| Expansion Slots Total (Free) | 4 ( 4 ) x EHWIC 4 ( 4 ) x PVDM 2 ( 1 ) x CompactFlash Card 1 ( 1 ) x Expansion Slot 2 ( 2 ) x service module (SM) |
Cisco 3945 Modules
Power Supply
| Power Device | Power supply – internal |
| Voltage Required | AC 120/230 V ( 47/63 Hz ) |
Dimensions / Weight / Miscellaneous
- Cisco 3945 Service Module Slots, sara ronnie poker, crown casino agency, casino domain extension. Gate777 Casino: Get a 100% deposit bonus up to £100 + 25.
- The Cisco 3945 router supports two memory slots which has been installed two 512MB memory cards. When upgrading the memory, the same capacity of memory cards must be inserted into the two memory slots in the same time. It doesn't support to use only a single memory slot.

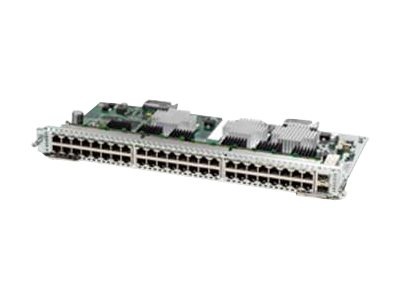

Service module (SM) slots are highly flexible with support for double-wide service modules (SM-D's), which are Service Modules that require two SM slots. SM-Ds in the Cisco 3925 and 3945 provide flexibility for higher-density modules. Service-module slots provide twice the power capabilities relative to the network-module slots. Cisco 3945-SEC/K9 Modular Router, C3900-SPE150/K9, 3-Port 10/100/1000 Gigabit Ethernet, 4 Enhanced High-Speed WAN Interface Card EHWIC Slots, 3 DSP Slots, 1 Internal Service Module ISM Slot, 4 Service Module Slots, 256MB Compact Flash, 1GB DRAM, Security Bundle.
| Width | 47.6 cm ( 18.74 in) |
| Depth | 43.8 cm ( 17.24 in) |
| Height | 13.3 cm (5.24 in) |
| Package Weight | 21.84 kg ( 48.15 lbs) |
| Weight | 17.7 kg ( 39.02 lbs) |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00,ICES-003 Class A, CS-03, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438 |
System Software
The Cisco 3945 is another fine device from the company’s collection of integrated services routers that provide small businesses with big solutions to their communication challenges. The 3945 provides topnotch security while delivering video, application, data, and voice services.
This router has an upgradable and modular SPE (150), three integrated Ethernet ports (10/100/1000). Two ports are capable of SFP or RJ-45 connectivity. The device has four slots for service modules, four onboard slots for digital signal processors (DSPs), four WAN interface slots (enhanced high-speed), and one slot for an internal services module.
The Cisco 3945 fully integrates its power distribution to all modules that support 802.3af PoE (Power over Ethernet). Its power supplies are dual integrated.
Cisco 3900 Series Integrated Services Routers User Guide
The device has excellent security features, including embedded VPN encryption that is hardware-accelerated, integrated threat control which uses the Cisco’s IOS IPS, their IOS zone-based firewall, their IOS firewall, and their IOS Content filtering.
Users’ identities are managed with AAA, as well as by a public key infrastructure.
To unify communications for small businesses, the router has a voice DSP module (high-density-packet) that has been optimized to support both voice and video. It provides standards-certified VoiceXML services for browsers, voicemail support, the capability for 100 sessions of Cisco’s Unified Border Element, and support for Cisco’s Communications Manager Express, as well as the company’s Survivable Remote Site Telephony.
The Cisco 3945 router offers branch offices opportunities for media collaboration, yet is cost effective for small companies who need to watch their bottom line.
Cisco 3945 Service Module Slots Download
The device has Gigabit Ethernet (GigE), which means that it can transmit Ethernet frames at a speed of one gigabit per second.
Cisco 4331 Enhanced Service-module Slots
Cisco ended the sales of new 3945 routers in February 2013. It plans to cut off support for the device on February 28, 2018. Although there is no replacement for the device, the company encourages its customers to migrate to one of Cisco’s UCS E-Series Server blades if possible.
